BVC3 Series

DocumentDownload Datasheet

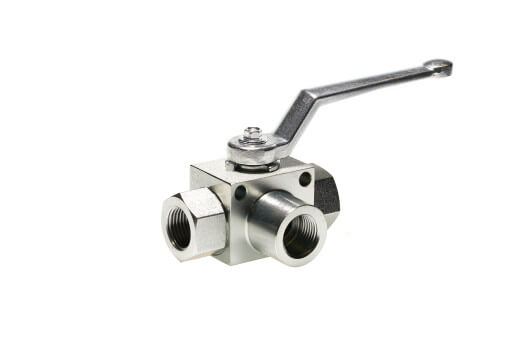

Three way high pressure ball valves

Construction ApplicationsDemolition ApplicationsIndustrial ApplicationsAgricultural ApplicationsForestry Applications

Holmbury’s BVC 3 Series three way high pressure ball valves are designed to suit a wide range of applications. These valves should not be used as flow control valves and should therefore always be fully open or closed.
Speciality Coupling TechSpeciality Coupling
Carbon Steel Trivalent Materials
Ball ValvesBVC3 Series

Features

  • Available in ‘L’ or ‘T’ port configurations
  • One piece body design provides additional strength
  • Full bore valves provide unrestricted flow path for negligible pressure drop
  • 90 degree operation
  • Cranked handle allows clearance for easy operation






Accessories

  • Valve Locking Kits and Valve Handles are available for the BVC 3 Series






Construction

  • Carbon steel with trivalent plating
  • Fitted with Nitrile seals
  • Also available in AISI 316 stainless steel (See BVS 3 Series)
  • Metric and flanged available on request






Applications

  • Designed for usage in general hydraulic systems, machine tools, test equipment, agricultural, and mobile hydraulics






AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
