Stainless steel in-line check valves

Industrial Applications

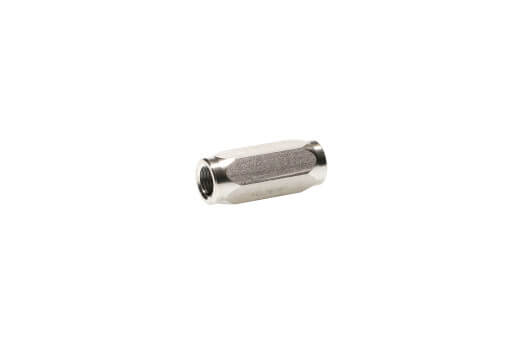

Holmbury’s CVS Series stainless steel in-line check valves are designed to suit a wide range of applications. The CVS Series check valve allows flow in one direction and blocks it in the opposite direction. The flow is only allowed once a pre-set cracking pressure is reached.
Speciality Coupling TechSpeciality Coupling
Stainless Steel Materials
Speciality ValvesCVS Series

Features

• Various cracking pressures are available
• Single directional flow
• Bleed hole can be provided to allow gradual
   dissipation of the pressure in the hydraulic circuit,
   beyond the check, once the primary valve is opened
   to tank











Construction

  • AISI 316 stainless steel
  • Fitted with Viton seals (Other seals available on request)
  • Also available in carbon steel (See CV Series)













Applications

• Marine
• Offshore
• Pharmaceutical
• Power Generation














AVAILABLE SEALS AND TEMPERATURE RANGE

All carbon steel products have Nitrile Butadiene Rubber seals fitted as standard. All stainless steel products have Fluoro-elastomer Rubber (Viton®) seals fitted as standard. Special seal materials available on request.

0°

106°C 223°F

Nitrile

120°C 248°F

EPDM

200°C 392°F

Viton®

300°C 572°F

Kalrez®

0°

-20°C -4°F

Viton®

-25°C -13°F

Kalrez®

-40°C -40°F

Nitrile

-50°C -58°F

EPDM

Abbreviation Trade Name Chemical Name Min Temp. Max Temp.
NBR XNBR Chemigum®, Hycar8, Breon®, Butakon®, Butacril®, Buna-N®, Perbunan®, Paracril®, Krynac®, Europrene-N®, Nipol® Nitrile Butadiene Rubber Carboxylated Nitrile Rubber -40°C (-40°F) 106°C (223°F)
FKM (FPM) Dai-el®, Fluorel®, Tecnoflon®, Viton® Fluoro-elastomer Rubber -20°C (-4°F) 200°C (392°F)
EPR EPDM Buna-AP®, Dufral®, Epsyn®, Nordel®, Epcar8, Keltan®, Royalene®, Polysar-EPDM® Ethylene Propylene Copolymer Ethylene Propylene Terpolymer -50°C (-58°F) 120°C (248°F)
FVMQ Silastic 1S®, FSE® Fluorosilicone Rubber -65°C (-85°F) 170°C (338°F)
FFKM Perlast®, Kalrez®, Chemraz®, Kaflon® Perfluoroelastomer -25°C (-13°F) 300°C (572°F)
